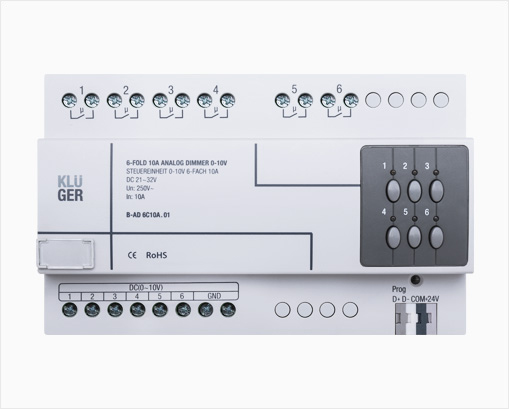

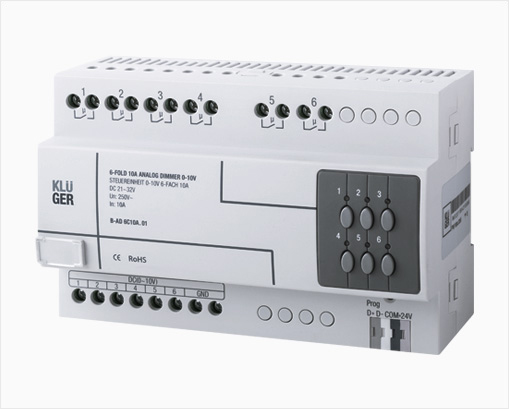

The B-AD 6C10A.01 is a multifunctional dimming unit. It is capable of controlling multiple load types and can support 6 channel inputs and outputs. Manual control is available on the unit itself, this makes instant system manipulation possible.
The ability to output 10-0V for ballast dimming and a 10A relay output switching function, make this unit truly multifunctional. Both 10V LED lights and 10V fluorescents, can be controlled and dimmed with the B-AD 6C10A.01. Each Relay channel is capable of connecting up to 30 dimmable ballasts and powering them on or off. Exact light intensity requirements can be met, at 0.1V the lighting is at %1 brightness, and at 10V the lighting is at %100 brightness.
Bus Working Voltage: DC15~30V
Bus Power Consumption: 30mA/DC24V
Relay Channel Output: 6CH/10A
0-10V Output: 6CH/100mA (Total current is less than 300mA)
Working Temperature: -5°C~45°C
Working Relative Humidity: Up to 90%
Storage Temperature: -20°C~+60°C
Storage Relative Humidity: Up to 93%
Dimensions: 144×90×66 (mm)
Net weight: 449.5(g)
Housing Material: Nylon, PC
Installation: 35mm DIN rail installation
Protection degree: IP20
CE, RoHS, UL Approved
