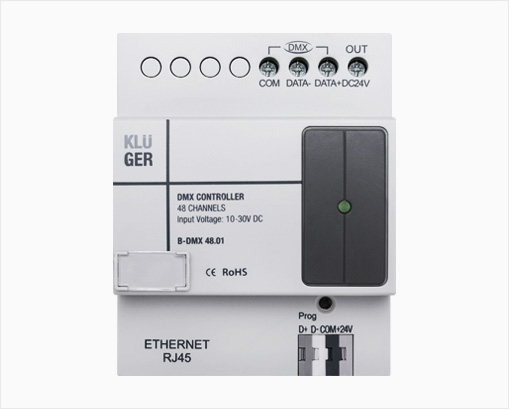

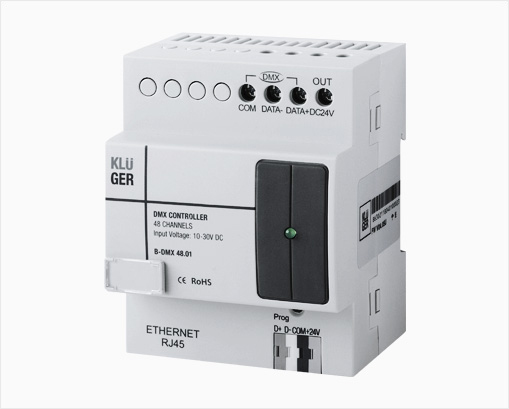

The B-DMX 48.01 is a -48channel DMX show controller with DMX1990 protocol. It is designed to control RGB LED Strips, RGB Lights and other DMX devices.
Default IP Address: 192.168.10.250
Port: 6000
Working voltage: DC12~30V
Bus power consumption: 40mA/DC24V
Signal interface: Klüger Bus, DMX, RJ45
RJ45 connection: RJ45 Network Interface
Working temperature: -5°C~45°C
Working relative humidity: Up to 90%
Storage temperature: -20°C~+60°C
Storage relative humidity: Up to 93%
Dimensions: 72×90×66 (mm)
Net weight: 141.5g
Housing material: Nylon
Installation: 35mm DIN rail installation
Protection rating: IP20
CE, RoHS, UL Approved
